ResMed AirFit N30i, AirTouch N30i, and P30i Headgear
ResMed controls how its prices are advertised, so we show them once you sign in. Signing in takes an emailed code, with no password to set up.
Sign in to see the priceIn stock
- Free shipping over $75
- Price match guarantee
- AirFit N30i
- AirTouch N30i
- AirFit P30i
Overview

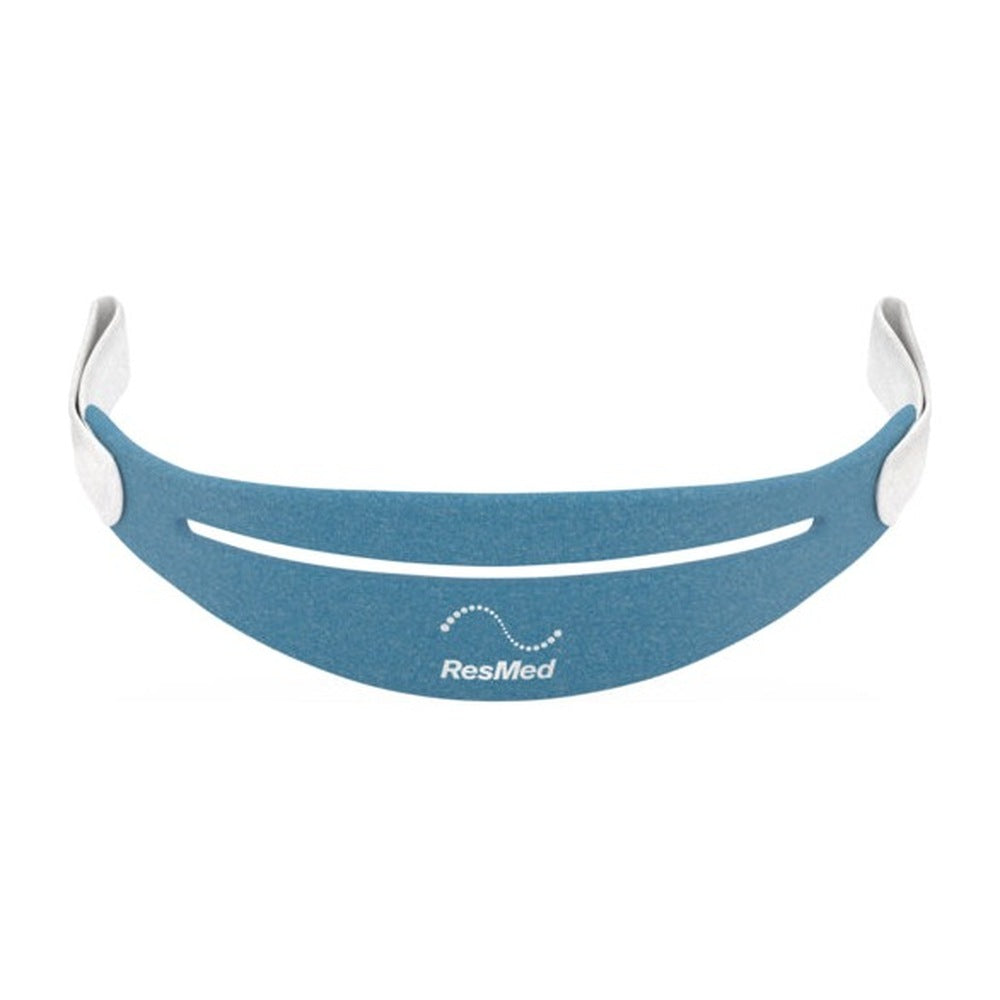

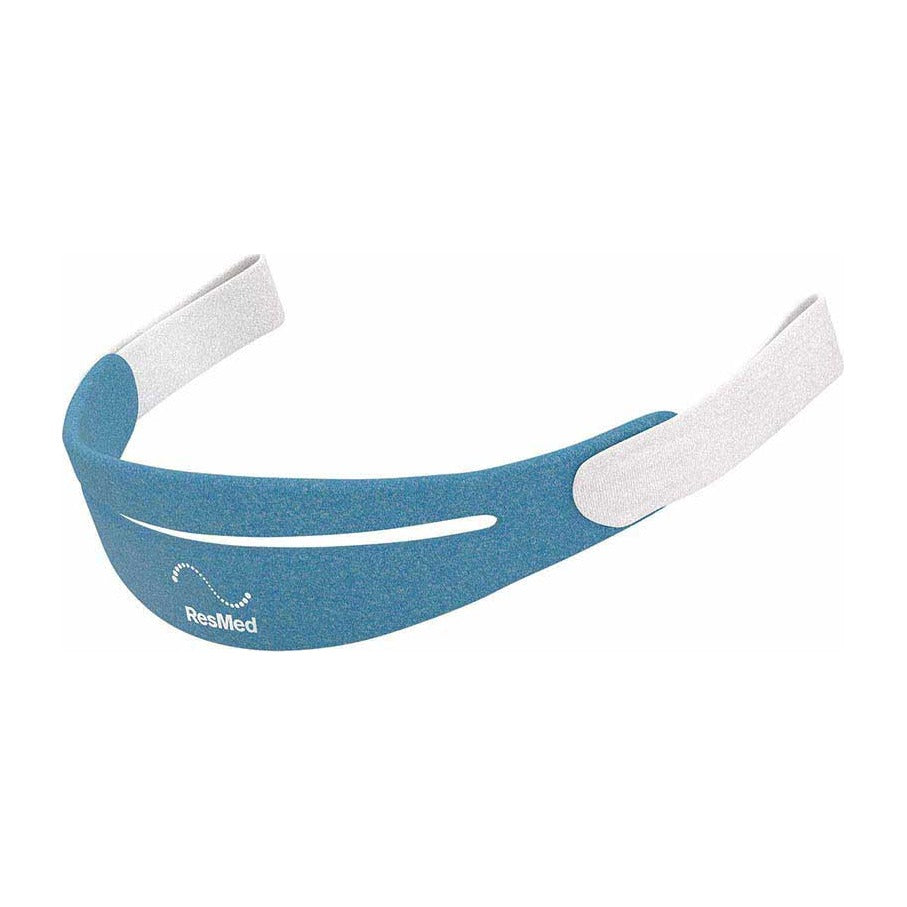

This is the headgear that holds a 30i frame steady while the hose runs over the top of your head. New straps bring back the even, gentle hold that keeps the cushion sealed as you move from your back to your side.
It's ResMed part 63814, made for the N30i, P30i, and AirTouch N30i masks, in one size for both Small and Standard frames. Your frame, cushion, and elbow carry over from the mask you own.
Key features:
- Frame position to taste: The top of the frame can sit further forward or back over your head, so you can settle it where it feels right.
- Room for long hair: ResMed's tip for long hair is to pass it through the gap behind your head, keeping any ponytail high.
- Close the tabs: Fastening the tabs back on themselves after you take the headgear off keeps their hooks from catching the fabric sleeves.
- AirTouch N30i too: The fabric-covered AirTouch N30i uses this same strap, since ResMed builds it on the same frame as the AirFit N30i.
- Nothing to add: The box holds the headgear alone, ready for the frame you have, with no clips, magnets, or adapters to buy.
It suits 30i wearers whose frame slides when they roll over, and households where one person wears pillows and another a cradle, because a single spare fits both. Change only the straps and keep the frame and cushion you already know.
Note: The AirFit N30, without the i, takes a different split-band headgear and won't fit a 30i frame. The F30i and X30i headgear looks similar but carries magnetic clips.
How it works
Fitting the new headgear
With the ResMed logo facing out and upright, pass each strap end into the frame and fold its fastening tab back. To take the old set off, open the tabs and pull the straps free of the frame.
Putting it on
Slide the frame and headgear on together, like a cap, until the elbow sits on top and the straps rest behind your head. Tighten or loosen them until the cushion sits comfortably under your nose, and stop there.
Weekly care
Once a week, work the headgear through warm water with a little gentle detergent, rinse it, and squeeze it in a towel before hanging it to dry. Skip the iron, and keep ozone and UV cleaners away from it.
What's included
- AirFit 30i headgear, one size
Specifications
- ResMed part number
- 63814
- Size
- One size, for Small and Standard frames
- Fastening
- Fold-back hook-and-loop tabs
- Clips
- None
- Magnets
- None
- Material
- Nylon and elastane fabric
- Not for
- AirFit F30i, AirTouch F30i, AirFit X30i (63372), AirFit N30 (64216)
- Pack
- Headgear only
Everything you need to know about the ResMed AirFit N30i, AirTouch N30i, and P30i Headgear
Steady in any sleep position
ResMed designed the 30i family to make any sleep position easier, side and stomach included, and the headgear helps keep the frame centred on the pillow. Fresh straps hold the cushion square under your nose, so it tends to stay sealed as you move.
Worn tabs and a slipping frame
When the hook-and-loop grips less and the fabric goes stretchy, the frame can creep and the seal can start to hiss. ResMed lists stretchy fabric or worn velcro as the signs headgear needs replacing, rather than tightening it further.

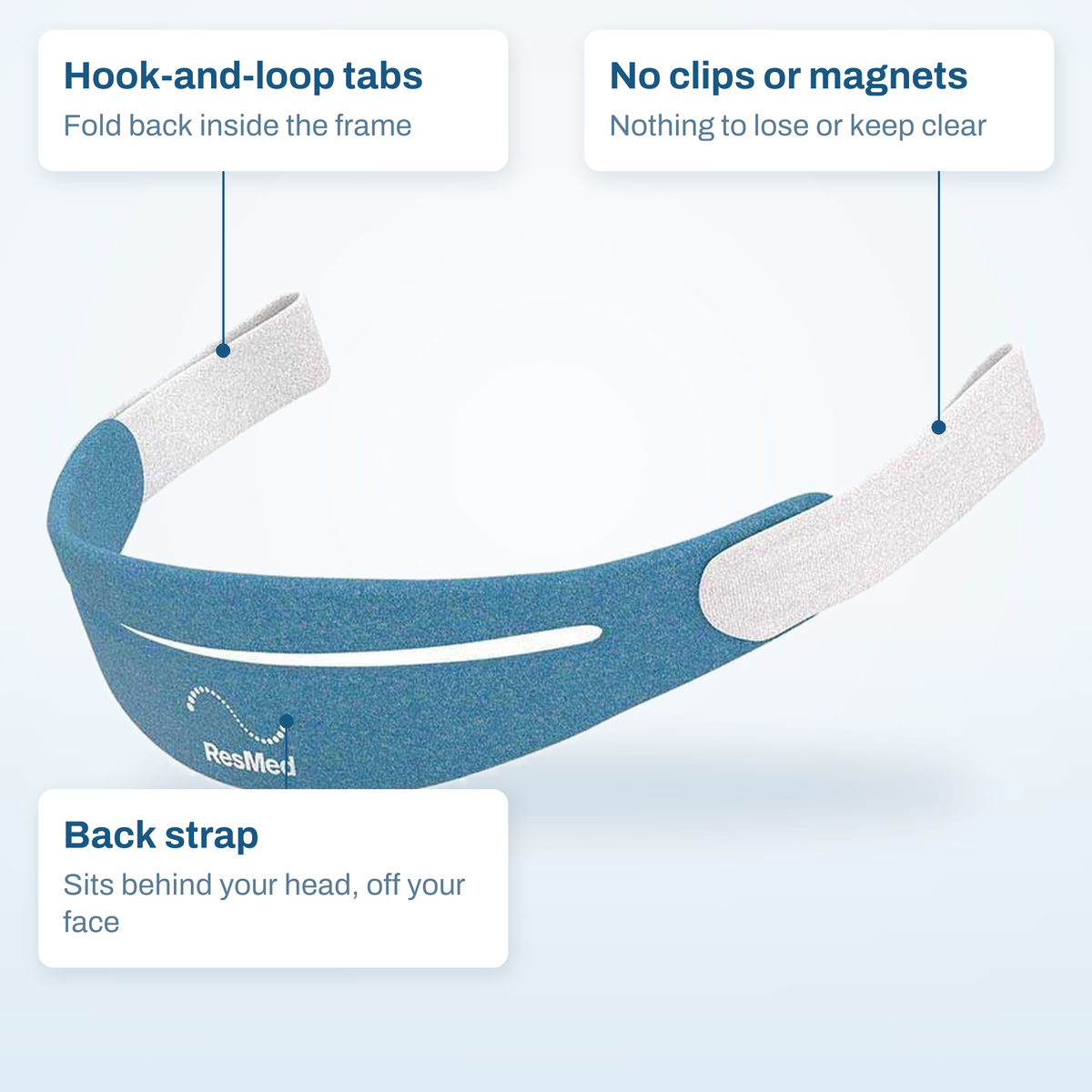

Fastens with fold-back tabs
Each strap end passes into the frame and folds back on its own tab, so the length you set holds from night to night. Because nothing clips on, a bed partner with an implant has no magnets to keep clear of.
Shared by three

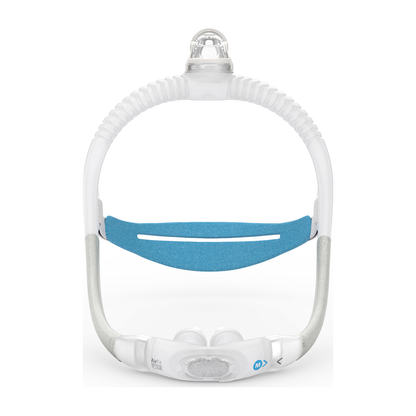

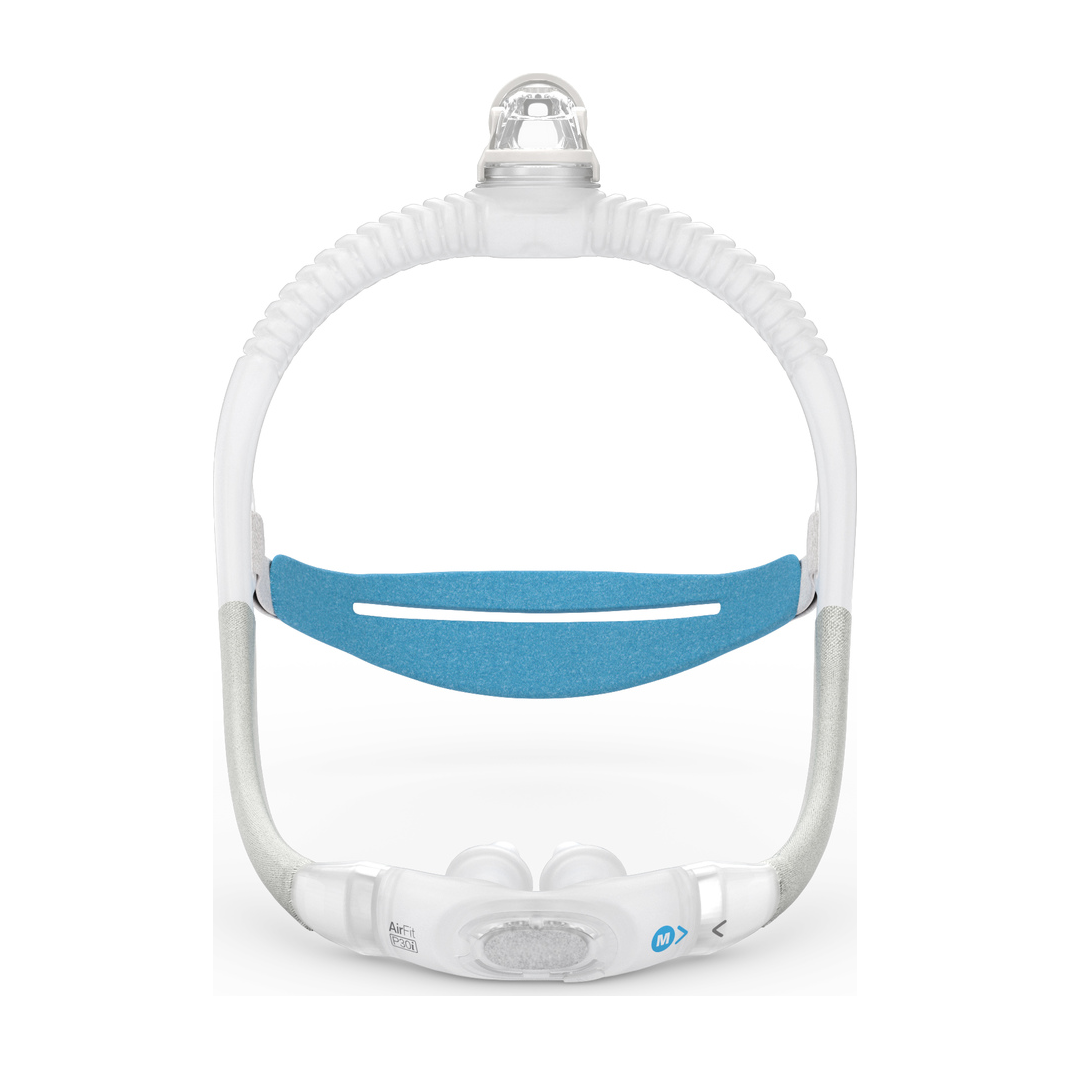

One headgear serves the N30i, P30i, and AirTouch N30i, so changing cushions never means new straps.
Off your face
ResMed built it to connect at the back of your head, so no strap touches the front of your face.
Tube on top
With the hose rising up and over your head, the straps hold the frame steady whichever way you sleep.
Clip-free fastening
Hook-and-loop tabs fold back to fasten, so there are no clips or magnets to drop behind the bed.
Frequently Asked Questions
Will this fit my AirFit F30i mask?
No. The F30i, AirTouch F30i, and X30i use a separate headgear, ResMed part 63372, whose lower straps end in magnetic clips. This one is for the AirFit N30i and P30i, plus the AirTouch N30i.
I have a Small frame. Which headgear?
This one. ResMed pairs the same headgear with both the Small and Standard frames, so there is a single size, and the frame and cushion are the parts you size.
How do I wash this headgear?
Weekly, and by hand. ResMed's routine is warm water, a mild liquid detergent, and a rinse that leaves no soap behind, then a press in a clean towel and drying in the shade, never the washing machine.
How often should the headgear be replaced?
ResMed's schedule is every six months, and insurers set their own timelines. Change it sooner if the tabs no longer grip or the fabric has stretched, since overtightening to make up for it is uncomfortable.
Can I switch between N30i and P30i?
Yes, on the same frame and headgear. ResMed makes the N30i cradle and the P30i pillows cushions interchangeable on one frame, so moving from one style to the other only means buying the other cushion.
